Led Walls & Video Monitors

LED Wall

Versa Flex Panels

The LED Wall has cutting edge technology that has allowed this video wall to become the new standard for our video events.  With its High Definition Broadcast ready 6m bright display, you can use this wall day or night with zero viewing issues whatsoever.  It's also water resistant which means your events aren't limited to inside usage.  With this wall, you have a many configurantion options besides the standard flat screen while hung or ground stacked, we can curve the wall and also give it an "S" shape to add an extra wow factor.  Please see pictures below to get a full visual of everything this state of the art wall can do. Some popular configurations are the full LED Wall  (10' x 20') and the Half Wall  (7 1/2' x 12 1/2')

All of these features for as little as 40%% of the cost of a custom set up LED wall of the same size and pixel pitch.

Technical Specifications

Pixel Composition 1 Red, 1 Green, 1 Blue SMD
Display Color Full Color (4.4 Trillions)
Cabinet Size 30.25" x 30.25"
Cabinet Depth 5.7" including handles
Viewing Angle 140° Horizontal / 140° Vertical
Weight Of Each Cabinet 40 lbs.
Inputs Analog: NTSC/PAL composite and Y/C video; SD YPbPR; HD YPbPr; RGBHV/RGBS/RGsB • Digital: DV; DVI-I; HD-15 VGA, EDID 1.3 compatible, HDMI, RGB and YCbCr; SD-SDI; HD-SDI, HDSDI: HDCP 1.4 compatible

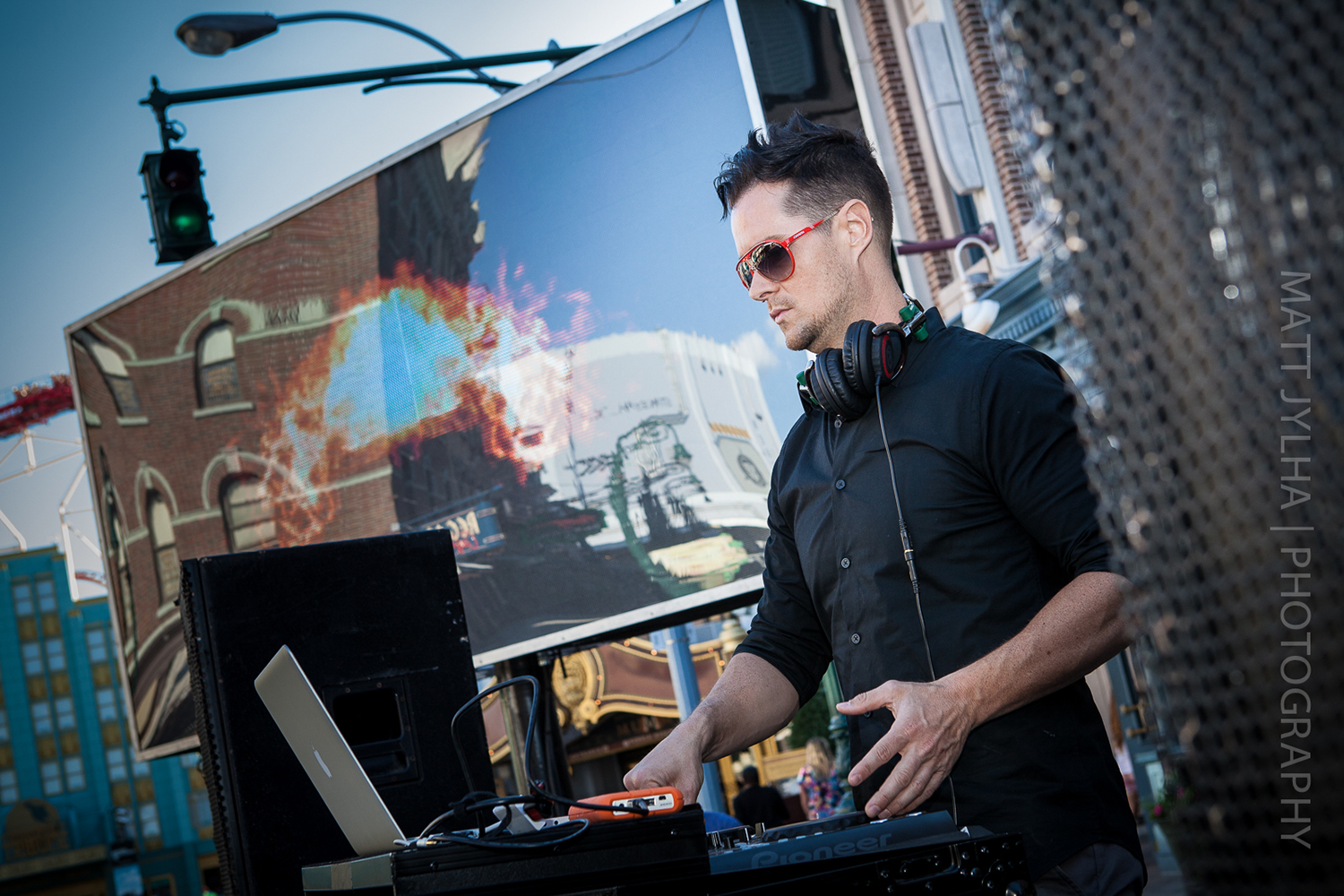

Mobile LED Trailer

The Mobile LED Wall is a quick setup, 165″ diagonal, 13 1/2 feet tall video screen that is so bright, it is crystal clear in full daylight. With the ability to take literally every video signal out today, including all HD formats, the Mobile LED wall is the perfect solution for any situation where you need to display HD video to a large audience, indoor or outdoor, daytime or night.

All of these features for as little as 25% of the cost of a custom set up LED wall of the same size, with no rigging, added crew charges or setup fees. The Mobile LED wall can also be available with an onboard generator for full independent outdoor operability.

Technical Specifications

Screen 6’3″x 12’3″ 165″ Diagonal • 5MM SMD • 6500 nits
Screen Height 7’3″ to top 13’6″ fully extended
Cabinet Size 30.25" x 30.25"
Trailer Dimensions 19′ x 8’6″
Inputs Analog: NTSC/PAL composite and Y/C video; SD YPbPR; HD YPbPr; RGBHV/RGBS/RGsB • Digital: DV; DVI-I; HD-15 VGA, EDID 1.3 compatible, HDMI, RGB and YCbCr; SD-SDI; HD-SDI, HDSDI: HDCP 1.4 compatible

Video Monitors

Our 70 inch, flat screen LED Monitors add a wow factor to any AV presentation.  These extremely large screens come standard with elevated truss mounting allowing them to be viewable by everyone and are available with water proof enclosures.

Outdoor LED Wall Specs

Width Height Total
Cabinet Size in [m2] (W) x (H) 0.768 0.768 0.589824
Display Size in [m2] (W) x (H) 3.840 2.304 8.8
Cabinet Size in [m2] (W) x (H) 5 3 15
Horizontal Vertical Pixels
Display Physical Resolution 0.768 0.768 0.589824
Display Size in [m2] (W) x (H) 640 384 245760



LED Specification

SMD LED 3 in 1 Brightness ≥500cd/m2
Viewing Angle 140°(V) / 140°(H)
LED Type SMD 3535 led with Paralyne Technology
Drive IC MBI5020

LED Module Specification

indert image here Pitch 6mm
Density 27777 pixels/m2
LED Arrangement 1R1G1B (3 in 1)
Drive Mode 1/8 Multiplex
Cabinet Size 768mm x 768mm
Module Size 384mm x 192mm
Module Pixel 64 x 32 Pixels
Cabinet Area m2 0.59
Weight / Cabinet Approx. 18 kg
Cabinet Material Aluminum

LED Display Specification

Mechanical Ratings
Surface Flatness GAP < 1mm
Optical Ratings
Gray Scale 12bit XRGB=68 Billion
Display Color 12bit
Brightness Adjustment 100 Levels
Power Supply
Operation Power AC110/220V, 50-60HZ
Max Power Consumption 500W/cabinet
Average Power Consumption 150W/cabinet
Power Supply Brand Meanwell
Control System
Control Mode Synchronous display with control PC by DVI
Frame Update Frequency 60-85 Hz
Screen Refresh Frequency > 480 Hz
Gamma Correction 16 Bits
Support Input Composite Video, S-Video, DVI, CATV
Control Distance (UTP CAT5E) cable: 100m; Multi-mode Fiber: 500m; Single-mode Fiber: 10km
Support VGA Mode 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200
Brightness Correction Dot by dot, module by module, cabinet by cabinet
Screen Uniformity Correction Pixel calibrated, brightness & colour, 9 point calibration
Environmental Operating Conditions
Operating Temp. - 20° ≈ 50° Celcius degree
Operating Humidity 10 - 90 % RH
Ingress Protection (Front/Rear) IP65
